Rotary 6 color pad printer with closed ink cup system

Features:
1.Controlled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3.Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4.Separate adjustment of the pad up/down stroke speed.
5.ink scraper is auto balance keeping in printing.
6.With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7.ink cup is turnable and adjustable in vertical and horizontal direction.
8.Super long slide stroke to print large size workpiece.
9.Speed of every single pneumatic organ is adjustable.


Description:
Six color pad printer ( tampo printing machine ) with close ink cup ensures that is
environmental, safe, ease operateing, it can save 60% ink and 90% thinner.
Help to reduce any solvents evaporating from the ink too quickly and also helps to
keep the ink at a constant temperature.
It is to fit pad printing plastic products, same as toyes, gift products, pen, PE products,
golf ball package products, bos, , hosehold, stationery, pen, ball, electron products,
mobile phone, bottle. Metals products, furniture fittings

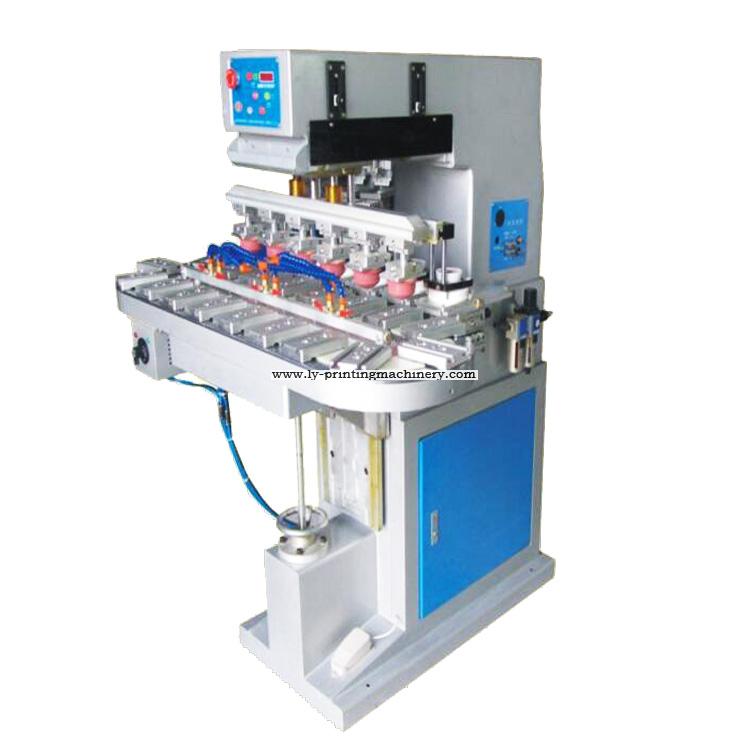

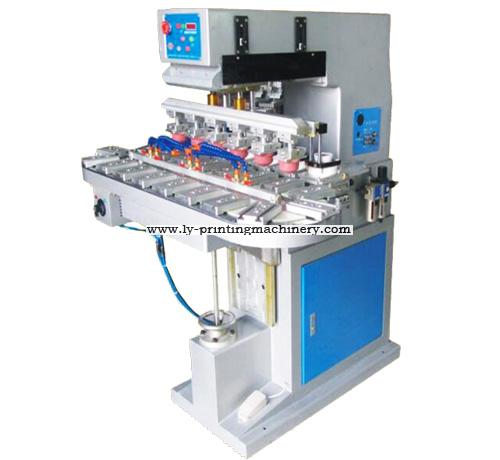

Closed ink cup system 6 color pad printing machine with conveyor

Specifications :

1.Model NO:LY-MP6-T250
2.Printing Colors：6
3.Plate area：100*250mm
4.Sealed ink cup：￠90 mm
5.Printing area：80*135
6.Conveying Stations jigs：18
7.Max printing speed：1500PCS/H
8.Power Supply：220V/ 50HZ 110V/60HZ
9.Air pressure：4-6pa
10.Machine Size：145×145×160cm
11.Net Weight: 315KG
12.Packing List: 150*150*175cm

13.Gross Weight: 428KG
